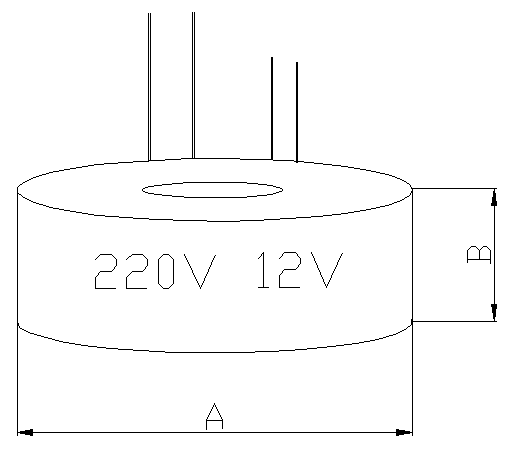

Dimensions are informative.

Power VA	50		100		150		200		250		300-350		400	500-600		mm
DiameterA	78	92	92	104	110	105	106	107	130	110	130	133	130	136	128	+6
Height B	35	22	52	47	54	59	62	63	52	64	55	59	55	66	71	+6

ACCESSORY FOR MOUNTING:
    - STEEL MOUNTING PLATE WITH RUBBER PROTECTION, OR
    - BUILT IN ISOLATION MASS WITH SCREW FOR MOUNTING.
